WASHO 73

WASHO 73

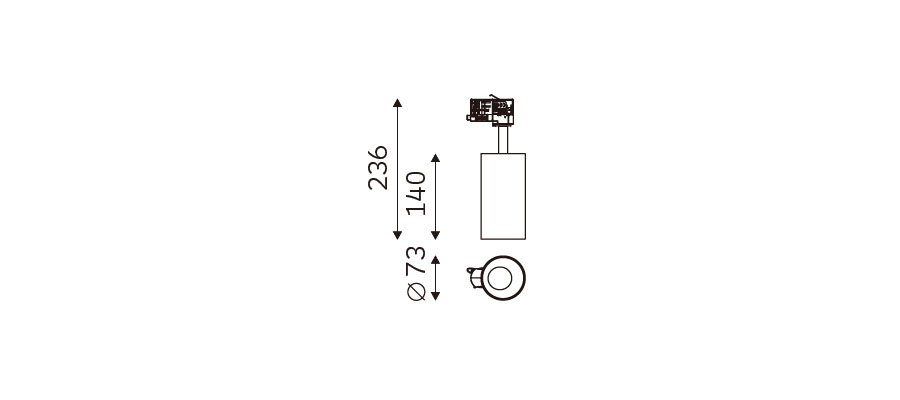

WASHO 73 dimension drawing
Product familyWASHO
Model32.07330
DimensionsØ73*140mm
Power15W
Luminous flux1123lm
Efficacy74.8lm/W
Voltage220-240V
CCT2700K/3000K/4000K
CRI90
Beam angleww Tilted 20° Beam 72°
IP ratingIP20
FinishWhite/Black
Mounting1 Circuit/ 3 Circuit
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗

Other sizes

More products in WASHO

View family →
WASHO 55

WASHO 55

Wattage: 9W

Size: Ø55*120mm

Lumen Output: 400lm

Beam Angle: ww Tilted 20° Beam 48°

Spotlight
WASHO 90

WASHO 90

Wattage: 28W

Size: Ø90*160mm

Lumen Output: 1754lm

Beam Angle: ww Tilted 22° Beam 52°
