SHOWLITE 45

SHOWLITE 45

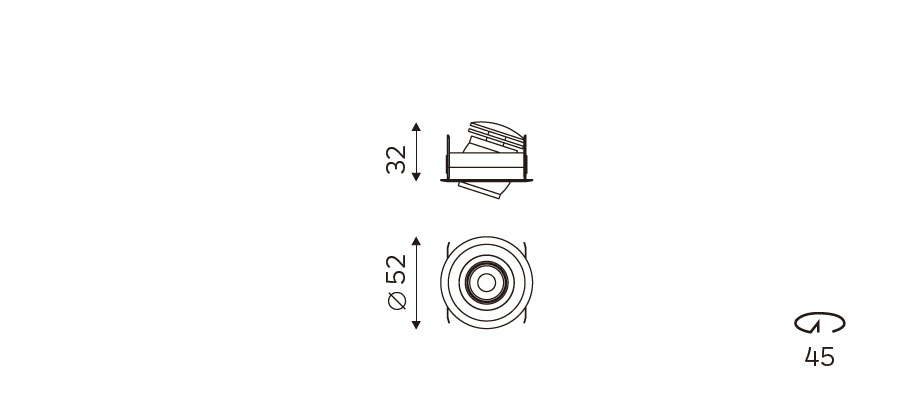

SHOWLITE 45 dimension drawing
Product familySHOWLITE
Model52.04526
DimensionsØ52*32mm
Cut-outØ45mm
Power4W
Luminous flux285lm
Efficacy71.2lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle19° / 23° / 28° / 46°
IP ratingIP20
FinishWhite / Black
MountingRecessed
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗
