EMMA 45

EMMA 45

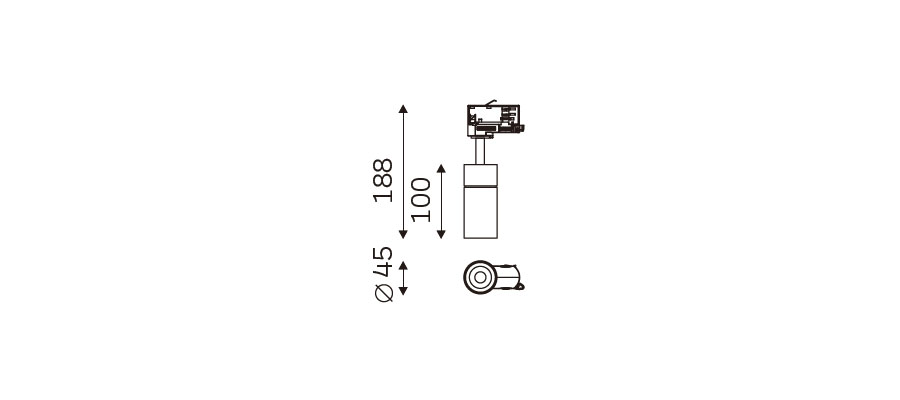

EMMA 45 dimension drawing
Product familyEMMA
Model32.04515
DimensionsØ45*100mm
Power11W
Luminous flux935lm
Efficacy85lm/W
Voltage220-240V
CCT2700K/3000K/4000K
CRI90
Beam angle19°/29°/44°/56°
IP ratingIP20
FinishWhite/Black
Mounting1 Circuit/ 3 Circuit
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗

Other sizes

More products in EMMA

View family →
EMMA 62

EMMA 62

Wattage: 14W

Size: Ø62*130mm

Lumen Output: 1627lm

Beam Angle: 18°/27°/38°/54°

Spotlight
EMMA 73

EMMA 73

Wattage: 24W

Size: Ø73*148mm

Lumen Output: 2963lm

Beam Angle: 14°/28°/40°/50°

Spotlight
EMMA 90

EMMA 90

Wattage: 36W

Size: Ø90*160mm

Lumen Output: 4509lm

Beam Angle: 16°/20°/30°/45°

Spotlight
