ARMI 73

ARMI 73

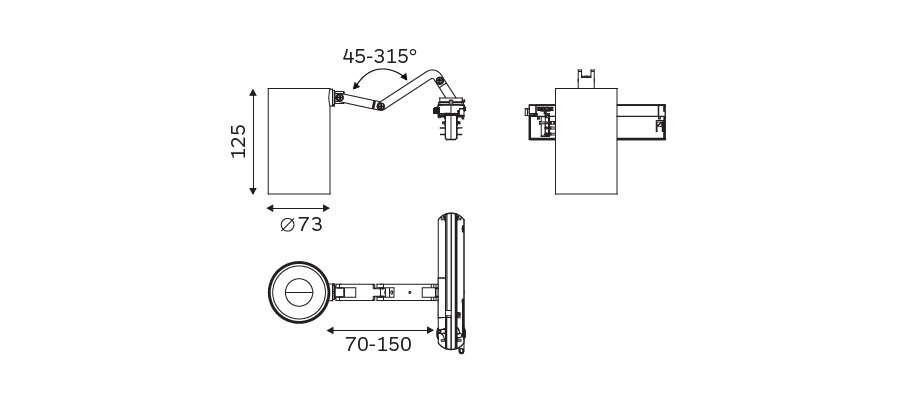

ARMI 73 dimension drawing
Product familyARMI
Model32.07326
DimensionsØ73*125mm
Power25W
Luminous flux2963lm
Efficacy118.5lm/W
Voltage220-240V
CCT2700K/3000K/4000K
CRI90
Beam angle14°/28°/40°/50°
IP ratingIP20
FinishWhite/Black
Mounting1 Circuit/ 3 Circuit
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗
